What is Ultrasonic Welding?

What is ultrasonic welding?

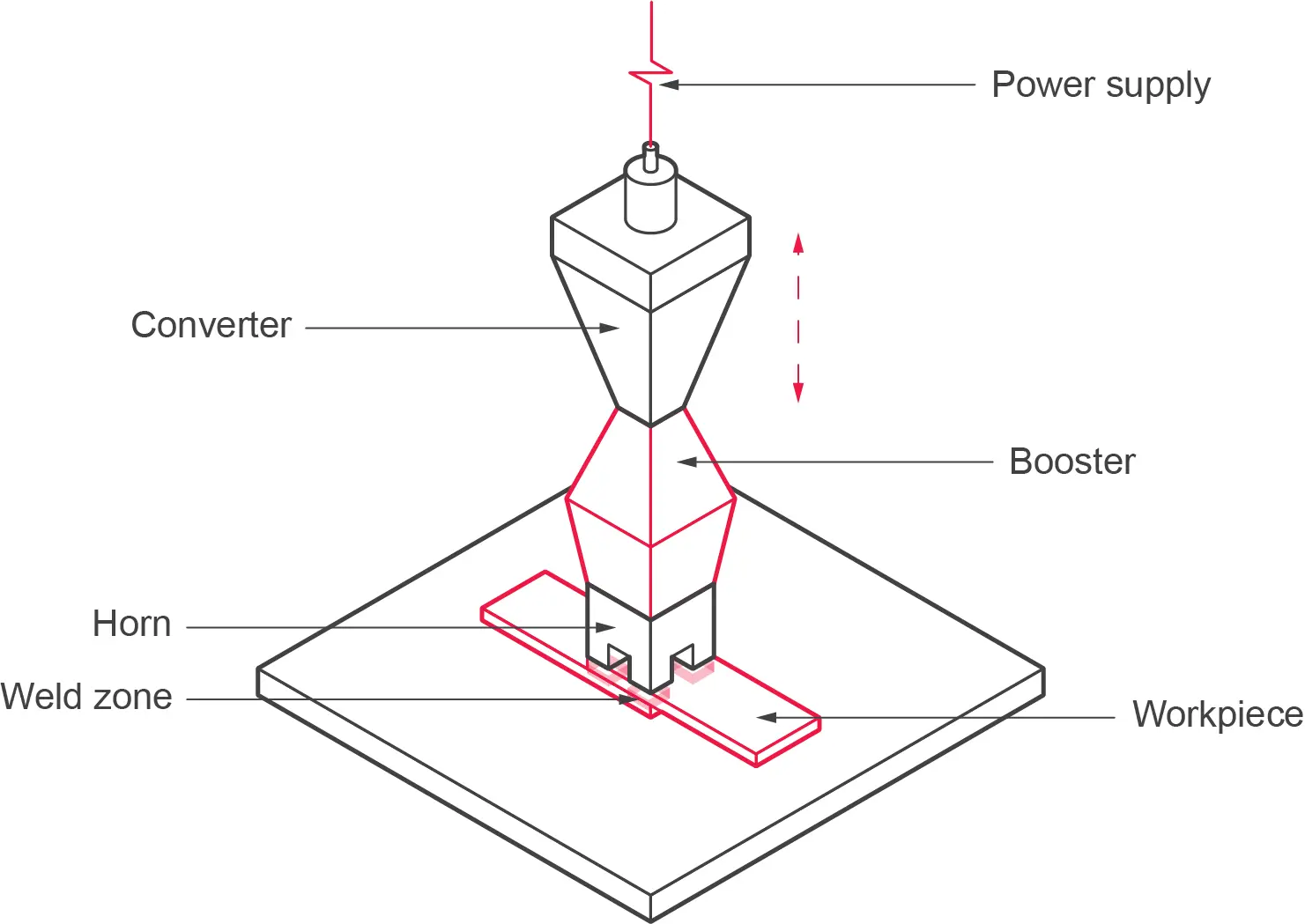

Ultrasonic welding works on the principle that two materials can be subjected to high-energy vibrations, generating frictional heat. The horn in the diagram is shaped to apply vibratory energy to selected joint areas. This heat plasticises the two workpieces, and when pressure is applied, the materials mix at the weld zone. When the vibrations stop, the combined material cools and solidifies to form a strong, homogenous bond. It is the cheapest and fastest plastic welding process, so engineers often favour it.


What is the ultrasonic welding process?

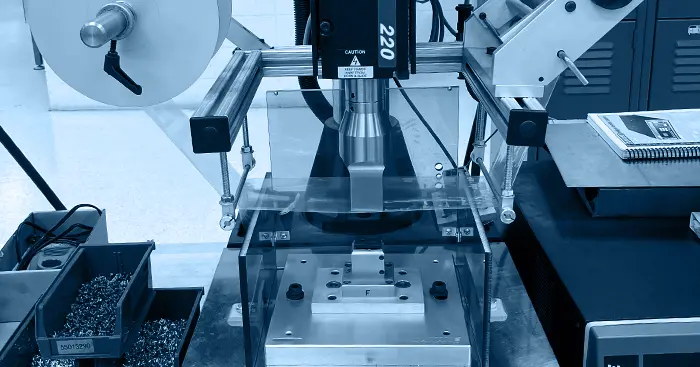

1) Initial assembly: Parts are secured within a specially designed fixture to ensure precise alignment during the welding process.

2) Engagement of horn: The horn interfaces with the upper part, exerting downward pressure towards the fixture with an electric press. This horn transmits the mechanical vibration to the parts.

3) Welding process: The horn initiates high-frequency vibrations (typically 20 kHz) that transmit mechanical energy to the components, generating heat at the interface and facilitating fusion.

4) Cooling phase: Post-welding, vibrations stop while the pressure is sustained, allowing the fused components to cool and form a durable bond.

5) Completion: Once the weld cools and solidifies, pressure is released and the horn retracted, freeing the newly welded component from the fixture.

Types of welds used in ultrasonic welding

Close Welding

Ultrasonic welding where the horn is positioned near (<6.35mm) the assembly joint. This approach is particularly suitable for welding materials with a low rigidity modulus, which can dampen vibrations shortly after they move away from the horn.

Distant Welding

Ultrasonic welding where the horn is placed further away from (>6.35mm) the assembly joint. It proves effective for welding materials with a high modulus of elasticity. These materials are capable of transmitting vibrations without significant dampening.


Ultrasonic inserting is used to incorporate metal components, such as inserts, into pre-made holes in the moulding. This method offers several advantages, including high strength and speed, prevention of stress accumulation, and shortened moulding cycles.

Spot Welding

The ultrasonic spot welding process is effective for joining parts that don't have pre-existing holes or energy directors - it's beneficial when dealing with larger components.


Melting and reforming a post on the moulding to mechanically lock dissimilar materials in place - provides short cycles, good appearance & tight assemblies.

Compatible materials

All thermoplastics can be joined using ultrasonic welding. Many amorphous thermoplastics such as ABS, PMMA and PC can be joined to themselves and, in some cases, to one another. Semi-crystalline thermoplastics such as PA, POM and PP can only be joined to themselves. Many factors affect the ability of a material to weld to itself or another plastic. For example, a material has to be sufficiently stiff to transfer vibratory energy to the joint interface.Amorphous materials are more suited to energy-directing joint designs, whereas semi-crystalline materials are best welded with shear joints.

Below is a guide on the performance of some commonly used plastics for ultrasonic welding. Generally, materials with greater stiffness are simpler to weld, and those with higher melting temperatures require more energy. For different materials to be welded together, they must have similar molecular structures. Materials with a crystalline structure can only be welded to other crystalline materials.

Plastic Material Type Abbreviation Structure Close Welding Distant Welding Inserting Welding Spot Welding Staking
Acetal Co/Homopolymer POM Crystalline Good Fair Good Fair Fair
Acrylic PMMA Amorphous Good Fair Good Good Fair
Acrylonitrile Butadiene Styrene ABS Amorphous Excellent Good Excellent Excellent Excellent
Polyamide 6 & 66 (Nylon) PA6 & 66 Crystalline Good Fair Good Fair Fair
Polycarbonate PC Amorphous Good Fair Good Good Fair
Polycarbonate/Abs PC/ABS Amorphous Good Fair Good Good Good
Polyester - Thermoplastic PBT/PET Crystalline Good Fair Good Fair Fair
High density polyethylene HDPE Crystalline Poor Poor Good Good Fair
Polypropylene PP Crystalline Fair-Poor Poor Good Excellent Excellent
Polyvinyl Chloride - Flexible PVC Amorphous Poor Unsuitable Unsuitable Poor Unsuitable

Advantages of ultrasonic welding


Ultrasonic welding is a fast process thanks to the high-frequency vibrations it uses. It takes just seconds to heat, weld, and cool materials.


It's a much safer alternative to other welding techniques, with highly focused energy and minimal heat generation.


Once set up and tested, ultrasonic welding equipment is super dependable. Plus, it can be automated, making it even more reliable.


It results in clean, precise joints without unwanted plastic flash or deformation.


Ultrasonic welding doesn't use extra materials like bolts or adhesives, which cuts costs. Plus, it's highly accurate and automated, reducing waste and labour costs.

Disadvantages of ultrasonic welding

Material Restrictions

While it works great on many thermoplastics, ultrasonic welding is only ideal for some materials, especially those with high moisture or tough plastics.

❌ Joint Limitations

Ultrasonic welding only works with certain types of joints, specifically lap joints. It's ineffective for corner, butt, tee, and edge joints.

❌ Lead Time

Setting up new ultrasonic welding operations takes time and effort. It requires custom tooling and multiple rounds of testing, adding to the lead time.

Custom Tooling

Every new ultrasonic welding project requires custom tooling, which may challenge smaller companies.

❌ Investment Cost

Ultrasonic welding equipment is pricier than traditional welding gear, especially with automation.

Industries that use Ultrasonic Welding

Tech World

Ultrasonic welding is used in the circuits of smartphones and computers. Traditional welding can fry delicate circuits, so ultrasonic welding is used to connect the dots without any damage. Things such as tiny microcircuits, computer disks, capacitors, and flash drives are all made with the help of ultrasonic welding.


A car's door panels and instrument panels are usually put together with ultrasonic welding. It's not just the car's interior; many engine components are made using this tech too.


When it comes to aircraft, ultrasonic welding helps to stick together thin, lightweight plastic sheets. The lightweight nature of ultrasonic welding is favourable for the aerospace industry.


Ultrasonic welding is very popular in the healthcare industry. It's super clean and doesn't add any nasty contaminants, which makes it perfect for assembling stuff like filters and pipettes for medical use. Plus, it's great for putting together plastic-based textiles, like the sterile gear doctors and nurses wear.


Ultrasonic welding is popular in packaging, especially when dealing with stuff that can't handle heat. It's often used for sealing up heat-sensitive foods in their packages. Blister packs, candy wrappers, frozen food packaging, and drink containers get their safe packaging from ultrasonic welding.

Summary of ultrasonic welding

Ultrasonic welding, a process where two materials are subjected to high-energy vibrations to generate frictional heat, is a popular plastic welding technique due to its speed and cost-effectiveness. Depending on material characteristics and application requirements, it uses methods like close welding, distant welding, inserting, spot welding, and staking. It is compatible with all thermoplastics, but the welding performance varies with different materials. While it offers benefits like speed and reliability. Limitations include restrictions on material types, size and the need for custom tooling. Despite its limitations, ultrasonic welding's versatility and efficiency make it a valuable technique in modern manufacturing.
