Injection Moulding Surface Finishes

By Ollie Cockman | 01/03/2022

start

Unlike other machining processes, a plastic injection moulding surface finish is achieved during the injection moulding process, rather than an additional step of finishing once a mould has been manufactured.

Injection Moulding Surface Finish Standards

As well as the product's design being determined prior to the process taking place, so too is its desired finish. The injection moulding surface finish standards are predominantly determined via The Plastic Industry Association’s Industry Standards, a body formerly known as the ‘SPI’. Within these SPI standards, the full range of finishing standards and grades are outlined, stretching from A-1 to D-3, detailing the surface roughness of each finish. An alternative finishing standard, known as VDI, is also available.

SPI Surface Finish

The SPI Plastic surface finish types are outlined by the Plastics Industry Association, an authority on surface finishing. This independent body categorised these surface finishes into four separate grades based on surface roughness, ranging from a glossy to a textured finish. Each of these finish options is assigned a grade - A, B, C and D.

Grade A - Finished with diamond buffing. (Glossy finish)

This category is the highest industry grade finish. A rotary tool, supplemented with diamond paste, provides the glossiest finish possible. Within Grade A, there are three internal levels, determined by the extent of polish; these levels rank A-1, A-2, and A-3.

SPI GradeFinishMethod
A-1 Maximum gloss finish Grade #3, 6000 Grit diamond Buff
A-2Standard gloss-finish Grade #6, 3000 Grit diamond buff
A-3Low gloss-finish Grade #15, 1200 Grit diamond buff

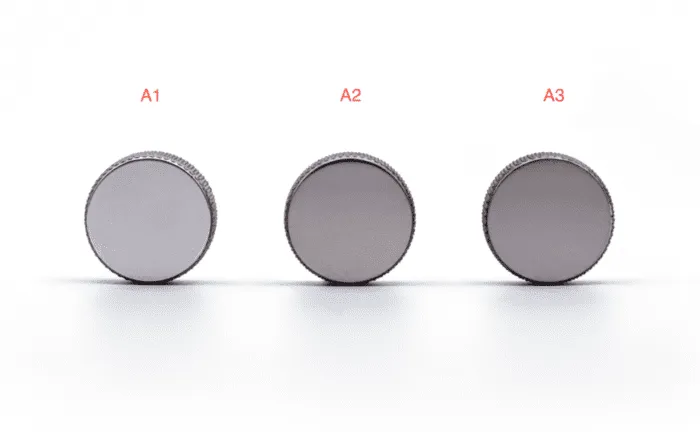

SPI Surface Finish A Grades
SPI Surface Finish A Grades (Above)

Grade B - Finished with grit sandpaper (Semi-gloss finish)

This finish can achieve a level of ‘semi-gloss’ and boasts a distinct pattern due to the sanding technique employed. Once again, the finish contains three internal levels, this time determining the level of sanding grit, which ranges from 600 to 400 to 320, which corresponds to levels B-1, B-2, and B-3. B-1 is considered semi-gloss, with this gradually decreasing through B-2 and B-3.

SPI GradeFinishMethod
B-1Semi-gloss600 Grit Sandpaper
B-2Medium-gloss400 Grit Sandpaper
B-3Low medium-gloss320 Grit Sandpaper

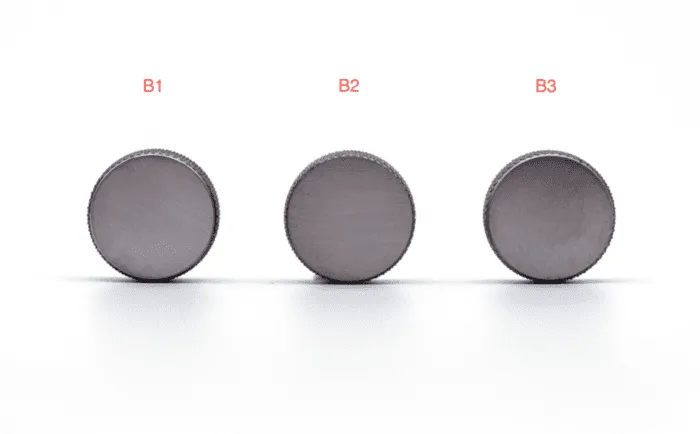

SPI Surface Finish B Grades
SPI Surface Finish B Grades (Above)

Group C - Finished with grit sanding stones (Matte-gloss finish)

This method is employed for those looking for a matte finish on their product(s). The grit of the stones, just like grade B, is measured from 600 to 400 to 320, resulting in levels of C-1, C-2, and C-3. The higher the grit, the more polished the mould.

SPI GradeFinishMethod
C-1Matte finish600 Grit Sanding Stones
C-2Matte finish400 Grit Sanding Stones
C-3Matte finish320 Grit Sanding Stones

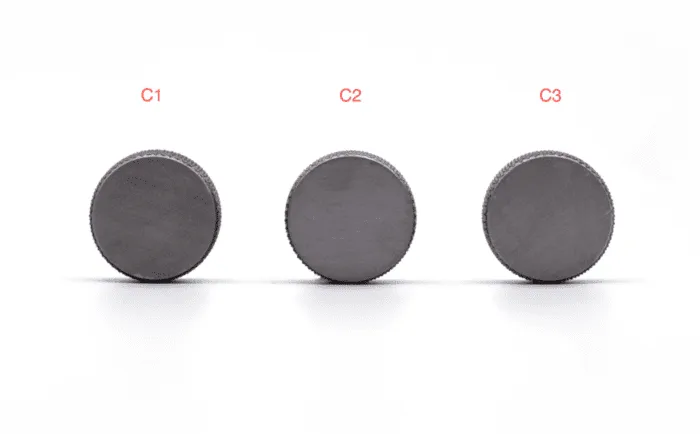

SPI Surface Finish C Grades
SPI Surface Finish C Grades (Above)

Group D - Finished with pressure blasting, using glass beads or aluminium oxide grains. (Textured finish)

This finishing technique is typically used to achieve a flat finish on plastic materials, and internal levels rank D-1, D-2, and D-3.

SPI GradeFinishMethod
D-1SatinDry Blast Glass Bead #11 Pressure Blasting
D-2DullDry Blast #240 Oxide Pressure Blasting
D-3RoughDry Blast #24 Oxide Pressure Blasting
SPI Surface Finish D Grades
SPI Surface Finish D Grades (Above)

VDI Surface finish

VDI Surface finish refers to the mould texture standard set Verein Deutscher Ingenieure. Whilst this process can be undertaken via traditional texturing methods, it is most commonly achieved by applying electrical discharge machining, otherwise known as ‘EDM’. Common questions asked are ‘what is the difference between SPI and VDI?’ and ‘what does VDI mean in surface finish terms?’. From a finishing perspective, the answer is simple, as the smoothest grade of VDI is equal only to a C grade SPI, suggesting that SPI is of greater quality, as it can achieve a smoother finish than is possible via VDI.

VDIApplication
12Low Polish Parts
SPIApplication
C-1Low Polish Parts

The above tables demonstrate the difference in finish standards between VDI and SPI, as the highest quality VDI finish is equivalent to, and used for the same applications as, a C-grade SPI. However, due to this disparity in quality, there is also a disparity in price, as SPI is on average more expensive.

What factors to consider when choosing a surface finish

Firstly, and potentially most importantly, cost. Ensuring your desired surface finish is cost-effective is of paramount importance. For example, in terms of SPI Surface finish, a grade A finish, which entails diamond buffing, is a more expensive and time-consuming option than grade C, which is finished with grit sanding stones.

Secondly, logistics. Different surface finishes take different time frames to be manufactured, and factors such as production deadlines need to be accounted for.

Visual Appeal

The desired visual appeal of the product manufactured dictates the SPI finishing method employed. For example, if for cosmetic purposes you desired a glossy finish to a product, such as a brick of lego for instance, an A-1 SPI finish would be used, rather than a C-2 finish, which would achieve a matte effect.

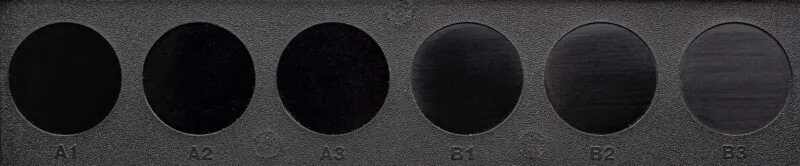

Surface Finish Grades A1-B3
Surface Finish Grades, A1-B3 (Above).
Surface Finish Grades C1-D3
Surface Finish Grades, C1-D3 (Above).

Functionality

Once start-up costs for this process are paid, injection moulding offers a highly cost-effective opportunity for manufacturing in high volumes. The process can be replicated a vast number of times if only one mould is required, producing a vast volume of material, with minimal added costs due to the early investment covering machining costs.

Cost

In addition to the high start-up costs of injection moulding machining, the higher the grade used in this process, such as an A-1 finish, for example, the greater the cost of production.

The design of a product is also important in limiting expenditure. If a design is simple and easily replicated, it can be manufactured repeatedly in large volumes using the same mould, representing a cost-effective production method. Using the same mould for the process, rather than designing and installing multiple alternatives, enables lower costs and quicker production times.

However, if there is variation between designs, multiple moulds will need to be manufactured, thus requiring greater investment.

To find out more about injection moulding services and costs from Get It Made, contact us for a free quoteget in touch with our team or head to our technical toolbox for more information.

Types of plastic and the best finishes to choose from

The tables below demonstrate the suitability of various different plastics for desired industry-standard SPI finish. SPI standard surface finishes.

Grade A finish (Gloss)

MaterialA-1A-2A-3
AcrylicHighly recommendedHighly recommendedHighly recommended
Polycarbonate (PC)FairGoodHighly recommended
Polystyrene (PS)FairFairGood
NylonFairFairGood
ABSFairFairGood
HDPEPoorFairFair
Polypropylene (PP)PoorFairFair
Polyurethane (TPU)PoorPoorPoor

Grade B finish (Semi-gloss)

MaterialB-1B-2B-3
Polystyrene (PS)Highly recommendedHighly recommendedHighly recommended
NylonGoodHighly recommendedHighly recommended
ABSGoodGoodHighly recommended
Polypropelene (PP)GoodGoodHighly recommended
HDPEGoodGoodHighly recommended
AcrylicGoodGoodGood
Polycarbonate (PC)GoodGoodFair
Polyurethane (TPU)PoorFairFair

Grade C finish (Matte)

MaterialC-1C-2C-3
ABSHighly recommendedHighly recommendedHighly recommended
Polypropylene (PP)Highly recommendedHighly recommendedHighly recommended
Polystyrene (PS)Highly recommendedHighly recommendedHighly recommended
HDPEHighly recommendedHighly recommendedHighly recommended
NylonHighly recommendedHighly recommendedHighly recommended
AcrylicGoodGoodGood
Polyurethane (TPU)GoodGoodGood
Polycarbonate (PC)FairPoorPoor

Grade D finish (Textured)

MaterialD-1D-2D-3
Polypropylene (PP)Highly recommendedHighly recommendedHighly recommended
HDPEHighly recommendedHighly recommendedHighly recommended
ABSHighly recommendedHighly recommendedGood
Polystyrene (PS)Highly recommendedHighly recommendedGood
NylonHighly recommendedHighly recommendedGood
Polyurethane (TPU)Highly recommendedHighly recommendedGood
AcrylicFairFairFair
Polycarbonate (PC)Highly recommendedPoorPoor
